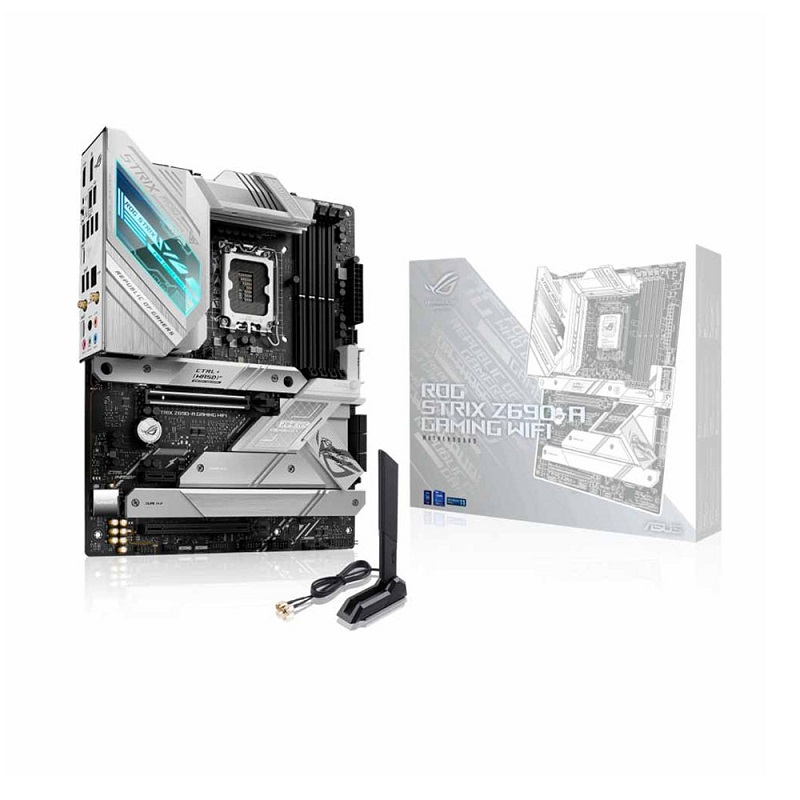

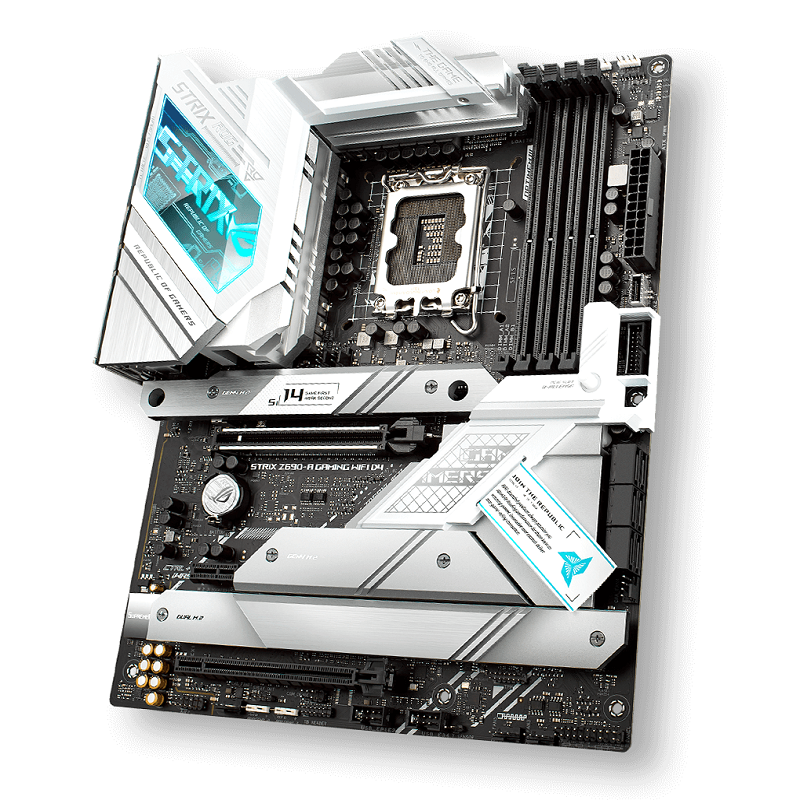

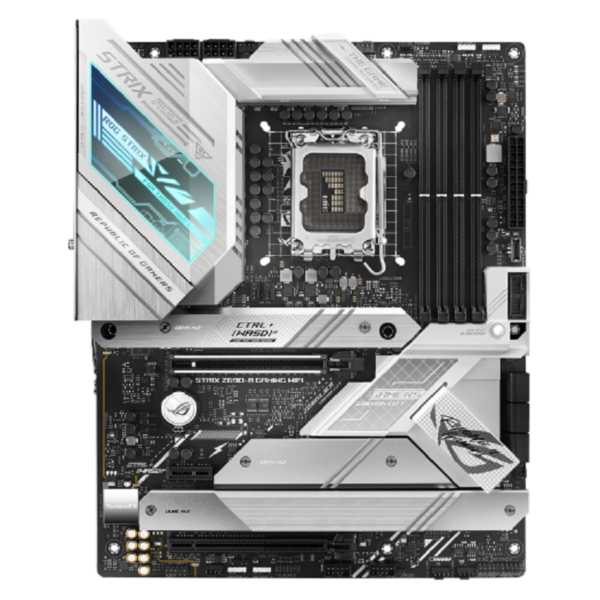

Mainboard ASUS ROG STRIX Z690-A GAMING WIFI DDR5
0 ₫
Thông số sản phẩm
- Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 192GB)
- Khe cắm mở rộng: 1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot
- Khe cắm ổ cứng: 4 x M.2 slots and 6 x SATA 6Gb/s ports
Mô tả
Thông số kỹ thuật chi tiết Mainboard ASUS ROG STRIX Z690-A GAMING WIFI DDR5
| CPU | Intel Socket LGA1700 for 13th Gen Intel Core™ & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Z690 |
| Memory | Kênh bộ nhớ:4DDR5 (Dual Channel)
Dung lượng bộ nhớ tối đa:192GB 4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory |
| Graphics | 1 x DisplayPort 1.4
1 x HDMI 2.1 1 x DisplayPort** 1 x HDMI |
| Expansion Slots | Intel® 13th & 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot* Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot |
| Storage | Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| Wireless & Bluetooth | Intel® Wi-Fi 6E
Intel® Wi-Fi 6E Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready |
| USB | USB phía sau:Total 10 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) USB phía trước:Total 7 ports 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium audio capacitors – Audio cover |
| Intrernal I/O Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |

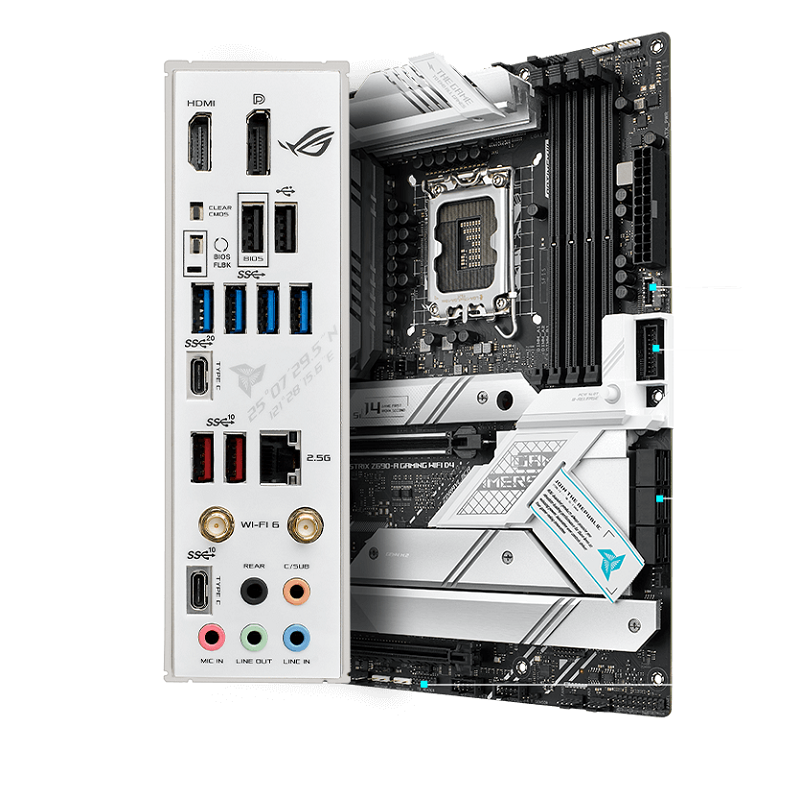

| Back Panel | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX
30.5cm x 24.4cm |
