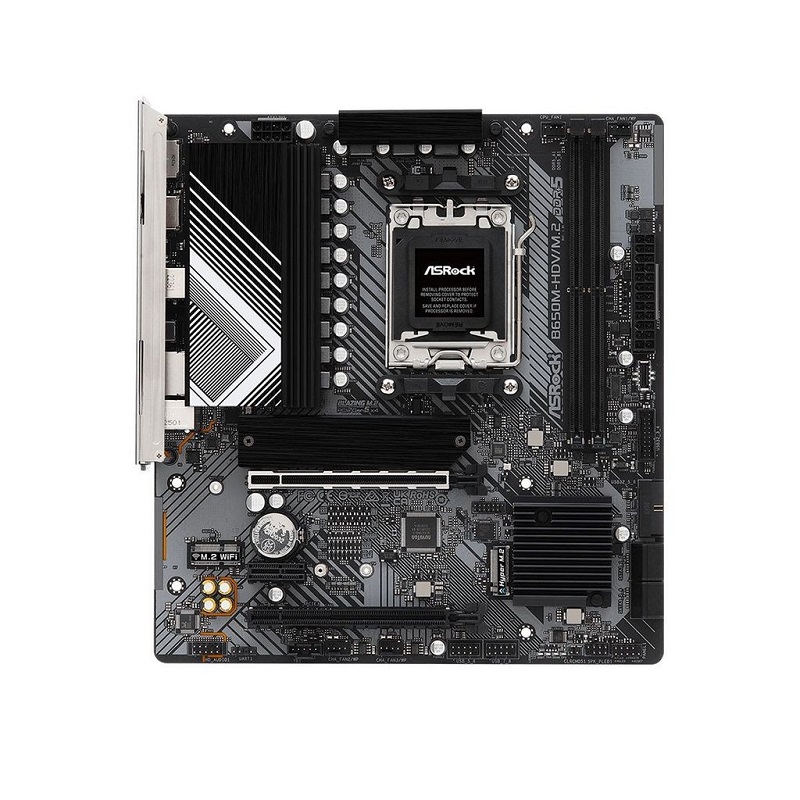

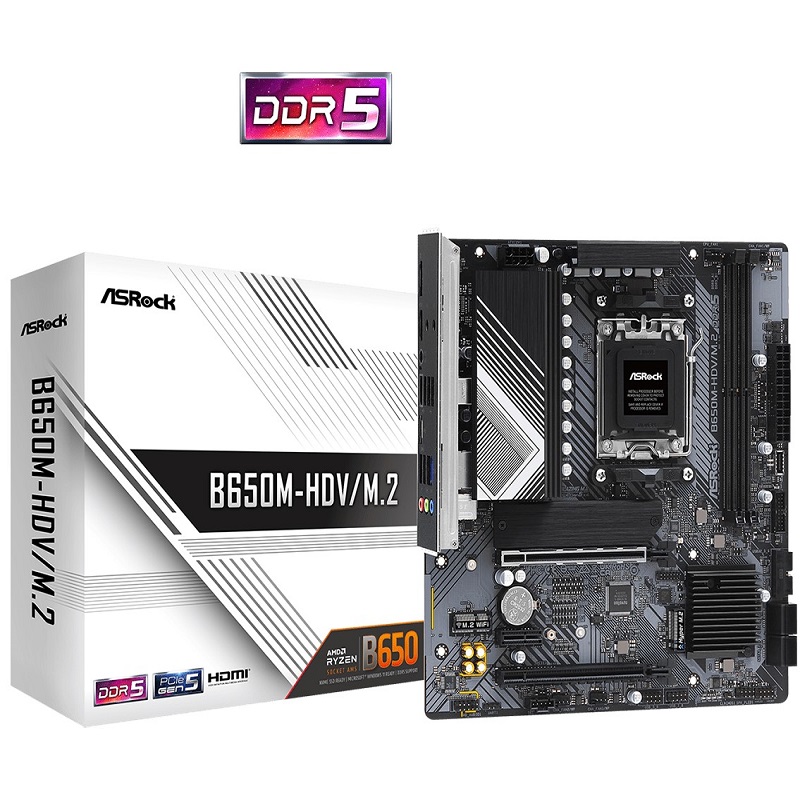

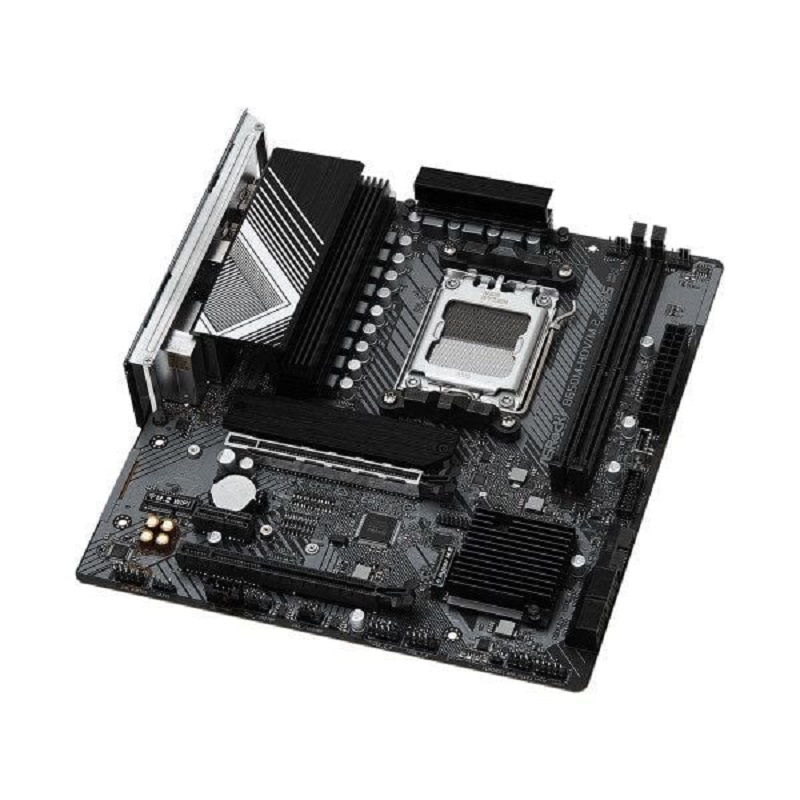

Mainboard ASROCK B650M-HDV/M.2 (AMD B650 / Socket AM5 / m-ATX / 2 khe RAM DDR5)
3.000.000 ₫
Thông số sản phẩm
- Socket: Socket AM5 hỗ trợ Ryzen™ 9000, 8000 and 7000 Series Processors
- Kích thước: Micro ATX
- Khe cắm RAM: 2 khe (Tối đa 128GB)
- Khe cắm mở rộng: 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Khe cắm ổ cứng: 1 x Blazing M.2 Socket (M2_1, Key M), 1 x Hyper M.2 Socket (M2_2, Key M), 4 x SATA3 6.0 Gb/s Connectors
Mô tả
Thông số kỹ thuật chi tiết Mainboard ASROCK B650M-HDV/M.2 (AMD B650 / Socket AM5 / m-ATX / 2 khe RAM DDR5)
| Sản phẩm | Bo mạch chủ |
| Tên hãng | ASROCK |
| Model | B650M-HDV/M.2 |
| CPU hỗ trợ | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* |
| Chipset | AMD B650 |
| RAM hỗ trợ | Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Khe cắm mở rộng | CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* Chipset: – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire™ – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Ổ cứng hỗ trợ | CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors |
| Cổng kết nối (Internal) | 1 x SPI TPM Header
1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin)* 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header |

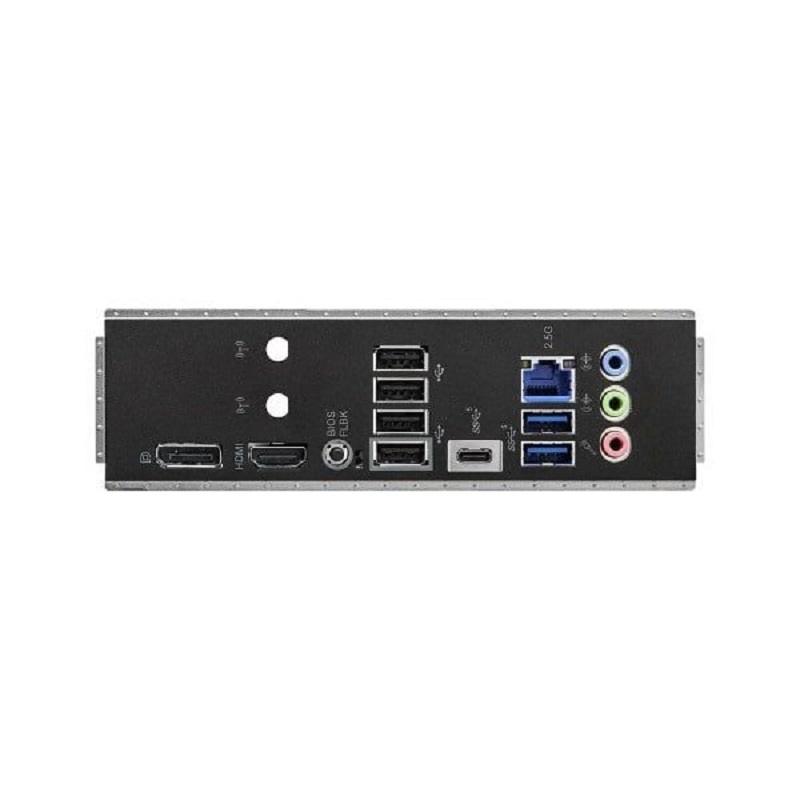

| Cổng kết nối (Back Panel) | 2 x Antenna Mounting Points
1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Kích cỡ | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
2oz Copper PCB |
