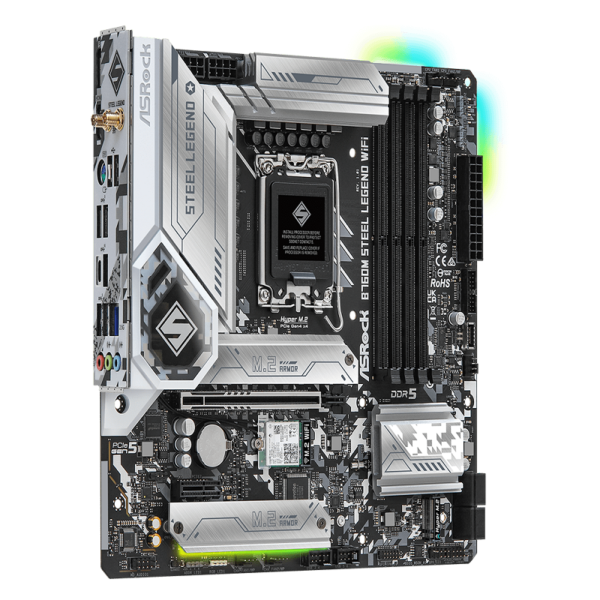

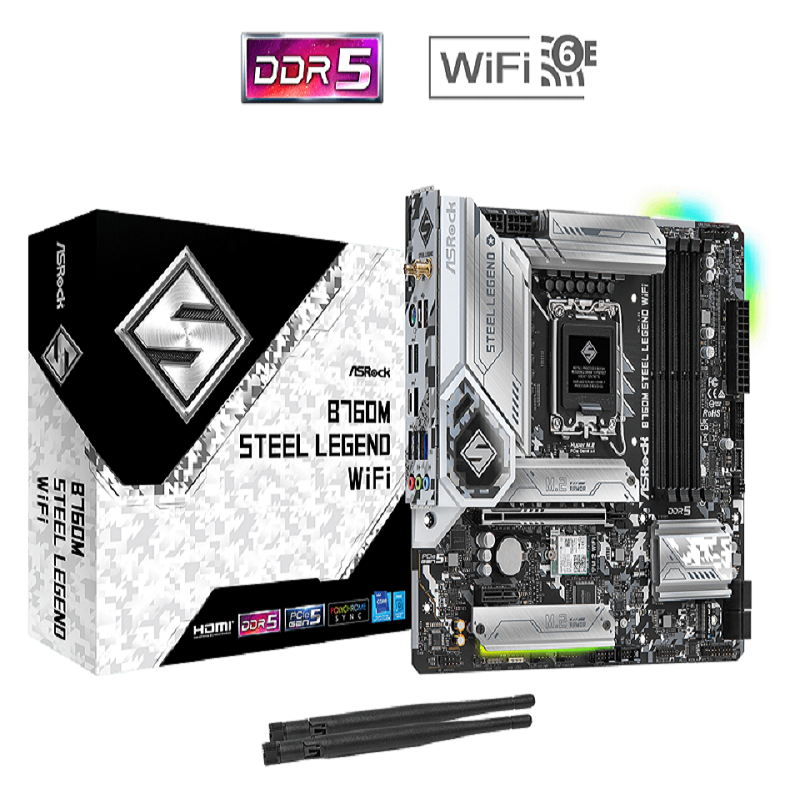

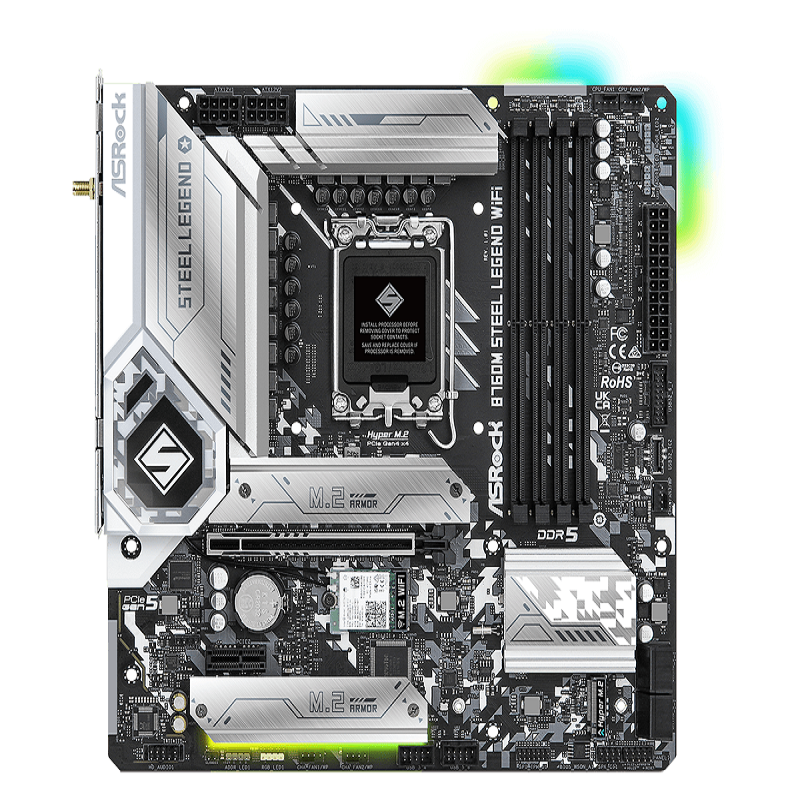

Mainboard ASROCK B760M Steel Legend WiFi DDR5

– Supports Intel® Hybrid Technology

– Supports Intel® Turbo Boost Max 3.0 Technology

– Supports Intel® Thermal Velocity Boost (TVB)

– Supports Intel® Adaptive Boost Technology (ABT)

– 4 x DDR5 DIMM Slots

– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

– Max. capacity of system memory: 256GB

– Supports Intel® Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.

1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.

2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.

2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

– 1 x PCIe 4.0 x1 Slot (PCIE2)*

– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

– 4 x SATA3 6.0 Gb/s Connectors

– 1 x SPI TPM Header

– 1 x Chassis Intrusion and Speaker Header

– 1 x RGB LED Header*

– 3 x Addressable LED Headers

– 1 x CPU Fan Connector (4-pin)

– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

– 1 x Front Panel Audio Connector

– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

– 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

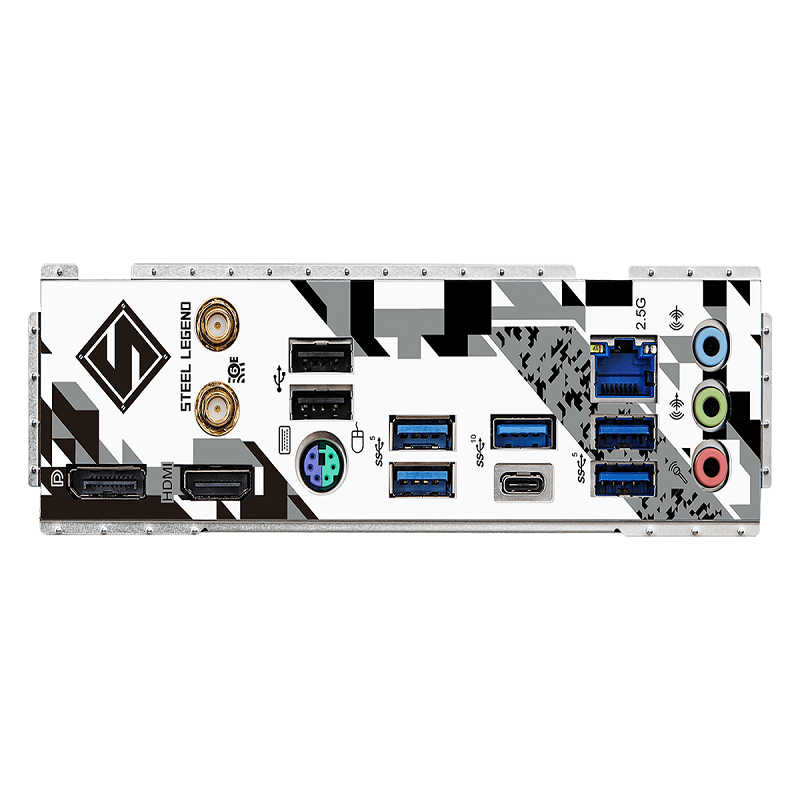

– 1 x PS/2 Mouse/Keyboard Port

– 1 x HDMI Port

– 1 x DisplayPort 1.4

– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

– 4 x USB 3.2 Gen1 Ports

– 2 x USB 2.0 Ports

– 1 x RJ-45 LAN Port

– HD Audio Jacks: Line in / Front Speaker / Microphone

– Supports IEEE 802.11a/b/g/n/ac/ax

– Supports Dual-Band 2×2 with extended 6GHz band support*

– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

– Supports Bluetooth 5.3 + High speed class II

– Supports MU-MIMO
