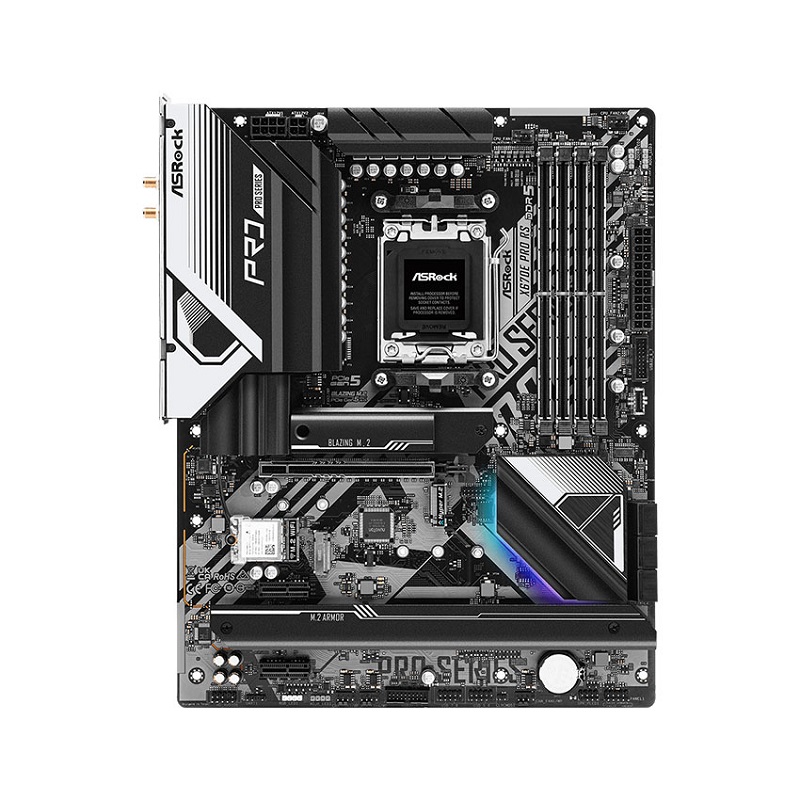

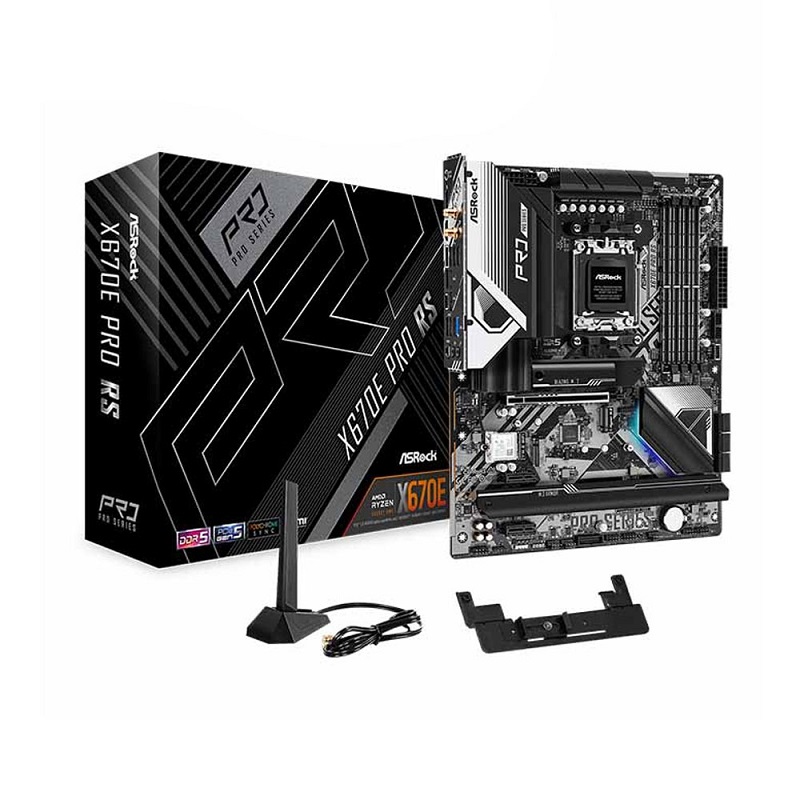

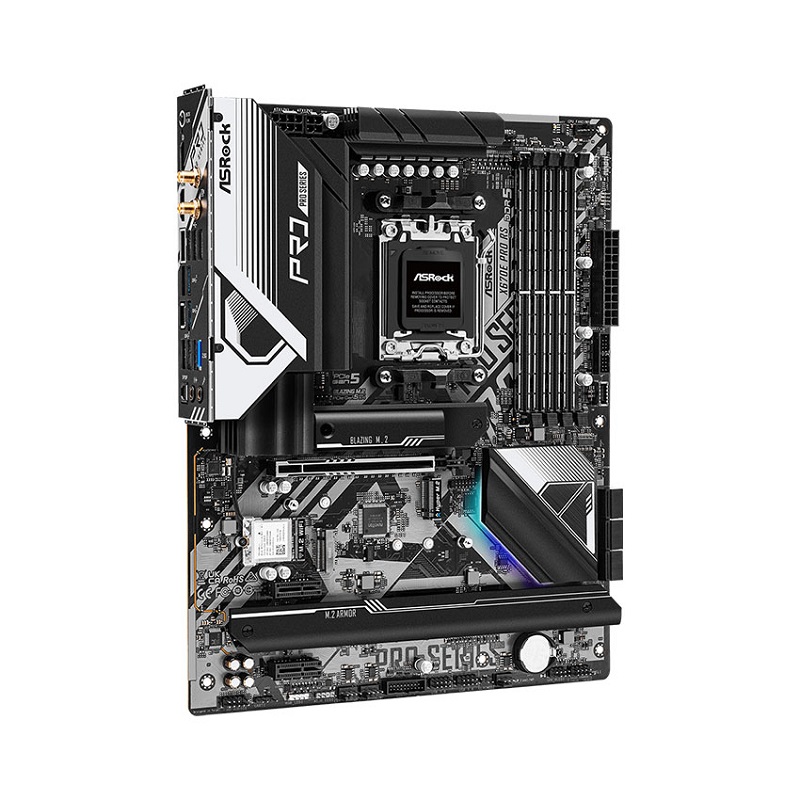

Mainboard ASROCK X670E Pro RS
6.750.000 ₫
Thông số sản phẩm
- Socket: AM5 Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 256GB)
- Khe cắm mở rộng: 1 x PCIe 5.0 x16 Slot, 2 x PCIe 4.0 x1 Slots, 1 x M.2 Socket
- Khe cắm ổ cứng: 1 x Blazing M.2 Socket, 1 x Hyper M.2 Socket, 1 x M.2 Socket, 6 x SATA3 6.0 Gb/s Gb/s
Mô tả
Thông số kỹ thuật chi tiết Mainboard ASROCK X670E Pro RS
| Sản phẩm | Bo mạch chủ |
| Tên hãng | ASROCK |
| CPU hỗ trợ | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD X670 |
| RAM hỗ trợ | – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7600+(OC)* – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Khe cắm mở rộng | CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Ổ cứng hỗ trợ | CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* – 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 6 x SATA3 6.0 Gb/s Connectors |
| Cổng kết nối (Internal) | – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

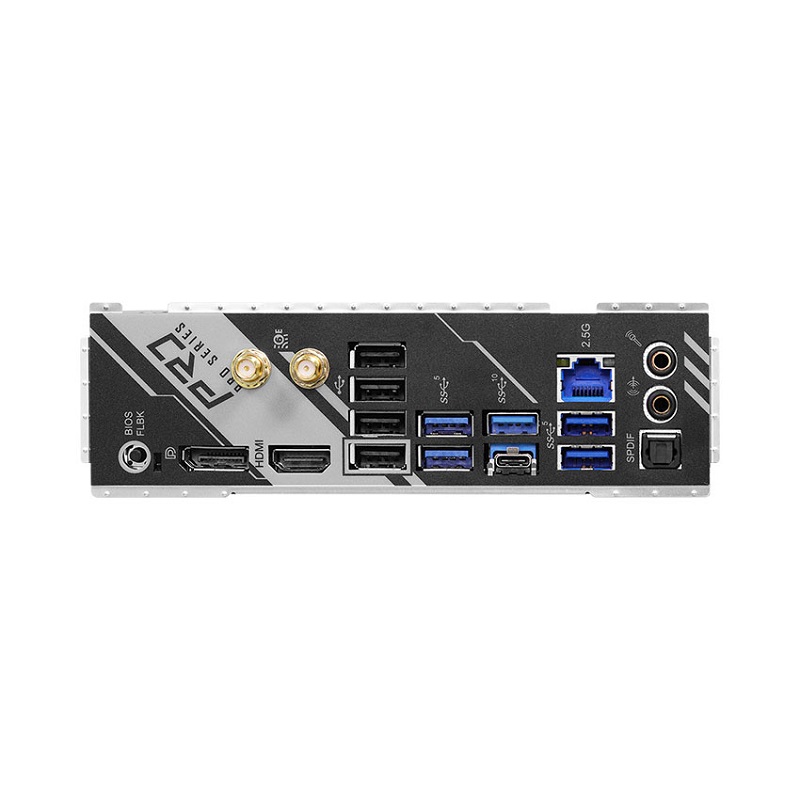

| Cổng kết nối (Back Panel) | – 2 x Antenna Ports
– 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) – 4 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| LAN / Wireless | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control – 802.11axe Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 + High speed class II – Supports MU-MIMO |
| Kích cỡ | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB |
