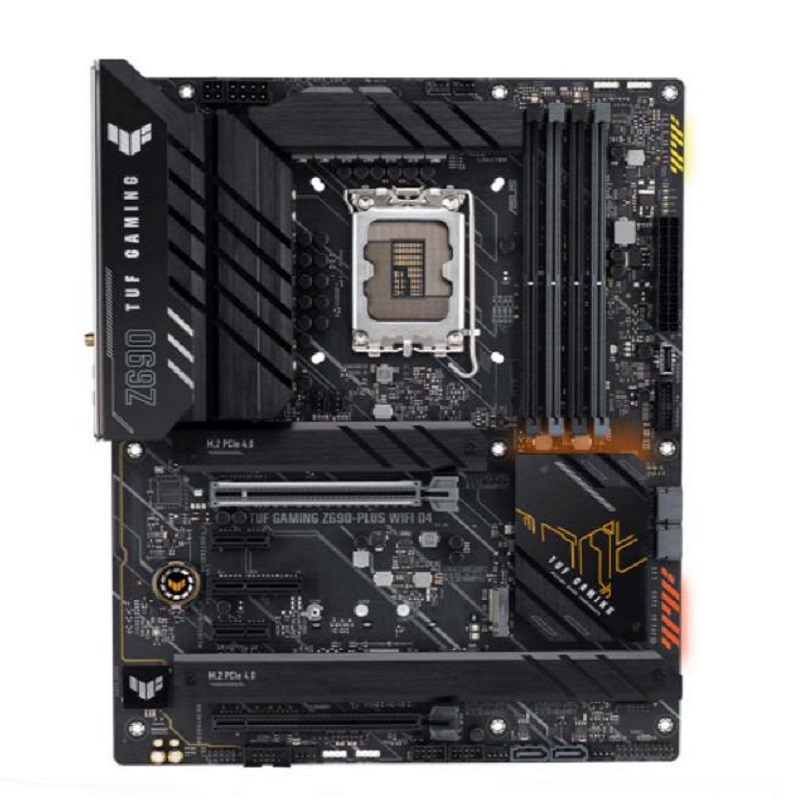

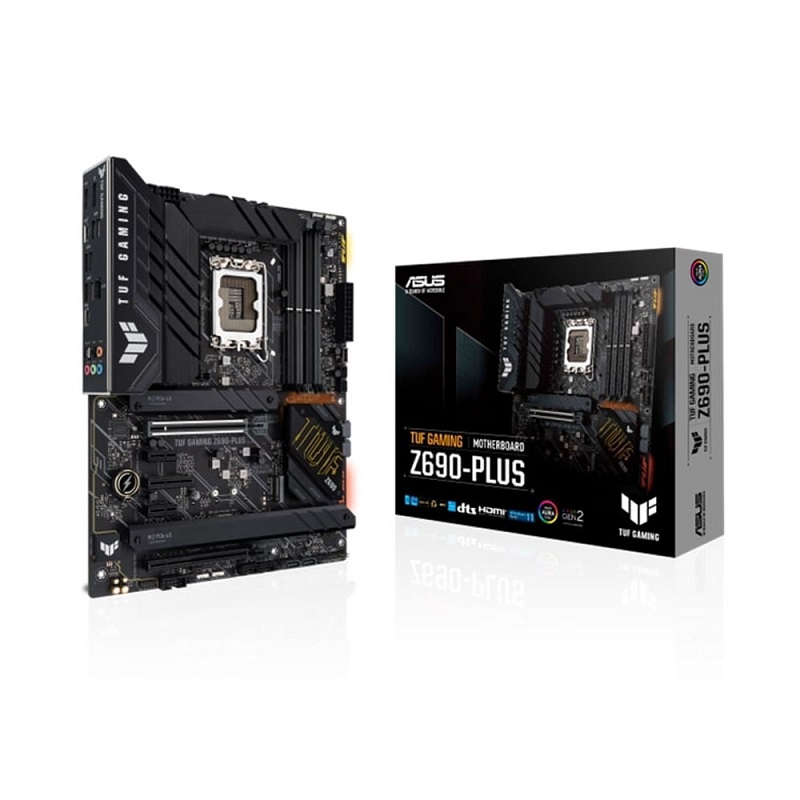

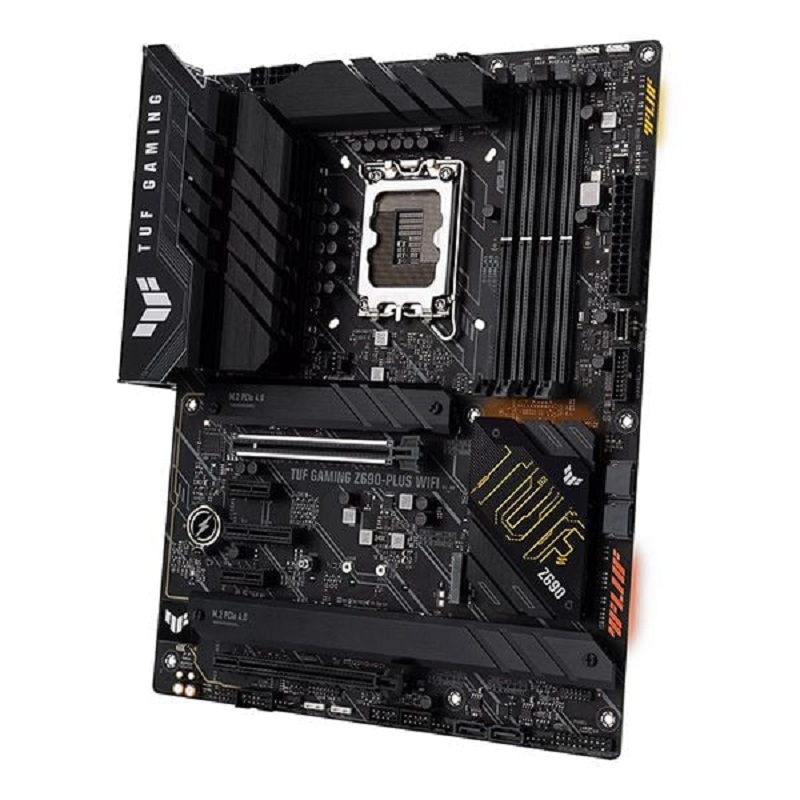

Mainboard ASUS TUF GAMING Z690-PLUS D5
0 ₫
Thông số sản phẩm
- Socket: LGA 1700 hỗ trợ CPU intel thế hệ 12
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 128GB)
- Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x4 slot, 2 x PCIe 3.0 x1 slots
- Khe cắm ổ cứng: 4 x M.2 slots, 4 x SATA 6Gb/s
Mô tả
Thông số kỹ thuật chi tiết Mainboard ASUS TUF GAMING Z690-PLUS D5
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* |
| Graphics | 1 x DisplayPort**
1 x HDMI® port*** |
| >Expansion Slots | Intel® 12th Gen Processors*
1 x PCIe 5.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots |
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet, Intel Wifi6
TUF LANGuard |
| USB | Rear USB:Total 8 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers Audio Cover |

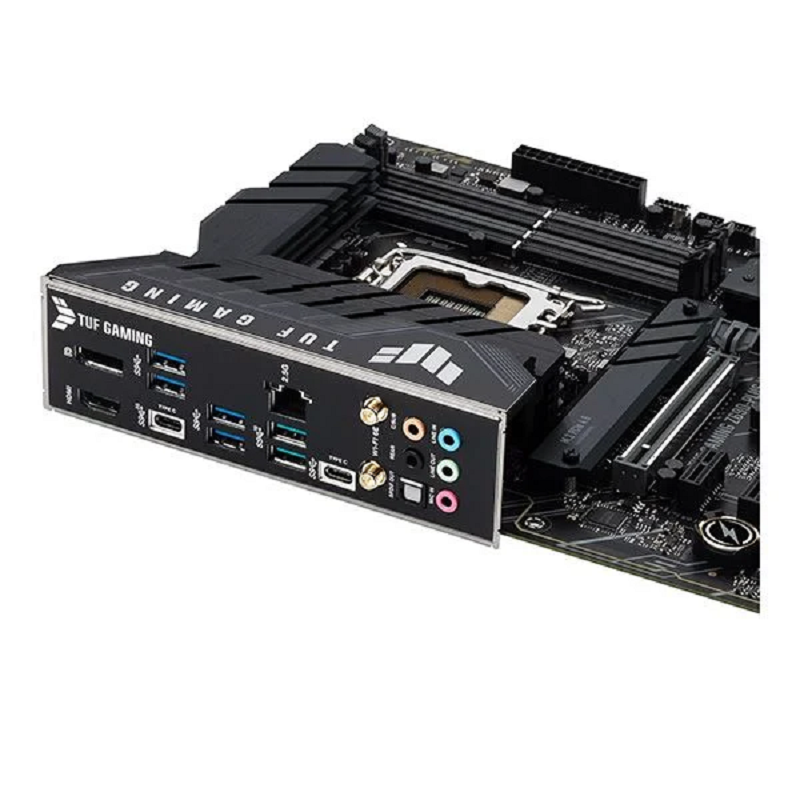

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Intrernal I/O Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Special Features | ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS) Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection Safeslot Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY CPU Socket lever protector ProCool Pre-mounted I/O shield SafeDIMM AURA Sync AURA RGB header Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software
Armoury Crate AURA Creator AURA Sync Fan Xpert 4 Two-Way AI Noise Cancelation AI Suite 3 Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Accessories | Cables
2 x SATA 6Gb/s cables Miscellaneous 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF GAMING sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
| Form Factor | ATX
30.5cm x 24.4cm |
